Rebuilt Model: One Year Parts Ninety Days Labor



Technical Facts

  • Speed of 40,000 per hr.
  • Sound level of only 70dBA
  • Paper size Max. of 12" x 17"
  • Paper size Min of 3-1/6" x 3-1/6"
  • Paper weight 4 lb. to 50 lb.
  • Paper feed and stacker tray 250 sheets
  • Size 25"W x 35"L x 17"H
  • Weight 130 lbs.
  • Duty cycle 40,000 pcs. month





FD40
PB FD40 folder

Pitney Bowes FD40

The model FD 40 is a mid-volume stand-alone folder. The folder control panel has a microprocessor-controlled user interface with an LCD display. Through the control panel, a user may setup and save up to 10 jobs for easy retrieval. The folder has an automatic paper thickness detection eliminating any manual settings, touch paper and fold selection, and batch count ability. In addition, system diagnostics are available to the operator.

New Model: One Year Parts Ninety Days Labor

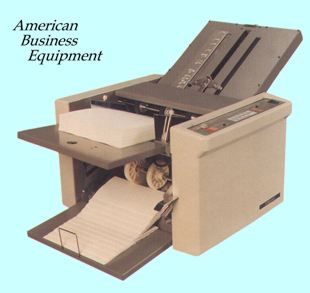

FD 370 folder

Technical Facts.

  • Hopper capacity 500 sheets
  • Automatic paper length
  • Six automatic fold settings
  • Drop in feed
  • Jam detection
  • Four digits batch counter
  • Variable speed up to 8,000 per hr.
  • Paper size up to 11" x 17"
  • Size 33" L x 20" W x 19" L
  • Weight 60 lbs.
  • Options: Perforator
  • Duty cycle 25,000 pcs. month

Formax FD 370

Similar to Model FD 330 but model 370 give you the ability to to memorize up to six different types of folding jobs and three types of paper lengths. Virtually all jobs set up can be run at the touch of a button.

New Model: One Year Parts Ninety Days Labor

Technical Facts

  • Hopper capacity 500 sheets
  • Drop in feed
  • Jam detection
  • Four digit batch counter
  • Speed is fixed at 8,000
  • Paper size up to 11" x 17"
  • Size 33" L x 20" W x 19" L
  • Weight 60 lbs.
  • Duty cycle 25,000 pcs. month

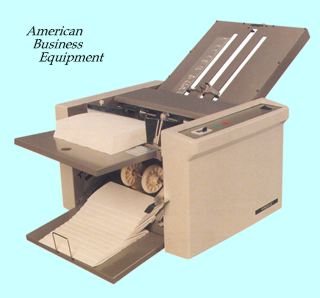

fd 330 folder

Formax FD 330

Crisp and accurate folds are easily produced with model FD 330. The FD 330 offers an easy to load (non fanning of material) system. Manual set up for folds is required but this is a easy to use folder.

Technical Facts

  • Adjustable speed settings
  • Fast speed 11" stock 12,5000 Per Hr. - Slow speed 5,000 Per hr.
  • Maximum sheet size 14" x 21"
  • Minimum sheet size 3" x 3-1/4"
  • Paper stock 9# onionskin to 90# Bristol
  • Stacker capacity 250 20# 8-1/2" x 11"
  • Size 22" W x 39" L x 17" H
  • Weight 79 lbs.
  • Duty cycle 45,000 pcs. month

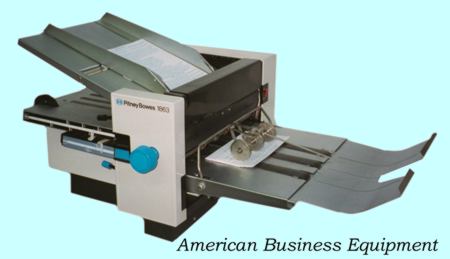

PB 1863 folder

Rebuilt Model One Year Parts Ninety Days Labor



1861/1863



Pitney Bowes 1861\1863
Pitney's basic folder design that has a long track record. Model 1861 is the older version of model 1863. Both have manual settings for fold type and each model has to have material fanned before placing it into the feeding tray. These "dial-a-fold" folders are still a standard in medium to large mail rooms.
